MULTIPRESS Press Container 1.4

Innovative pressing technology for optimal compaction

The MULTIPRESS 1.4 makes a significant contribution to sustainable cost reduction in waste management. Thanks to its modular, bolted design, the compactor container can be quickly and easily adapted to different locations and requirements. Whether it’s floor loading, ramp loading, or a combination hopper—with or without a drop-in lid—the MULTIPRESS 1.4 stands out for its maximum flexibility and universal applicability.
MP 1.4 mit Falconic

Flexible. Efficient. Future-proof.

The Multipress stands for the highest quality of workmanship, maximum operational reliability, and durable construction for daily waste management use. Designed for demanding applications, it combines robust technology with well-thought-out functionality.

Optimized compaction geometry ensures improved compaction performance and allows for a fill weight that is up to 20% higher. At the same time, the container is liquid-tight, making it ideal for wet waste. Another advantage is the large filling opening, which allows for convenient and efficient loading. The high-quality automotive-grade paint finish, quiet operation, and maximum operator safety underscore PÖTTINGER’s commitment to quality.

Produkte MP

All MULTIPRESS compactors are equipped with an integrated fire suppression system as standard, thereby making a significant contribution to preventive fire protection. In the event of a fire, the system enables both operators and firefighters to effectively prevent the fire from spreading to buildings and adjacent structures. By directly connecting a water hose, the compactor can be flooded without having to open or move it.

All PÖTTINGER compactors come powder-coated as standard and are available in all RAL colors. The solvent-free powder coating provides optimal corrosion protection, high durability, and a long service life. After cleaning and sandblasting (RA 2½), the components are primed and coated with a topcoat powder. A minimum coating thickness of 120 µm and curing at approximately 200 °C ensure a particularly robust, impact- and abrasion-resistant surface.

PÖTTINGER Multipress containers come standard with a low-noise pump. The machine operates at less than 59 dBA when idling.

The rear door or tailgate of PÖTTINGER baler containers comes standard with an 8-point locking system and ensures a high level of liquid tightness. The integrated transport hook allows for secure loading onto a truck. The safety release and door catch ensure maximum safety. If requirements change, the rear wall can be easily converted from a door to a flap thanks to its modular design, without the need for extensive modifications.

All PÖTTINGER compactors come standard with a phase inverter and a connection for a remote control, enabling flexible and safe commissioning. The optional convenience package enhances ease of use and efficiency in daily operation: an automatic full-bin notification system via text message for on-demand and cost-effective pickup, an electric lid opener for convenient handling, and a button for the tipping mechanism for simple and safe operation.

Solutions for Every Need

Installation Options

The modular design of PÖTTINGER baler containers allows for retrofitting to any hopper or opening configuration. From the standard baler hood for ground-level loading to the ramp hopper, a wide range of solutions is available to meet various operational requirements.

Tilting devices

PÖTTINGER's tipping devices are versatile and can be mounted directly on a compactor container or used as a stationary or mobile solution. They allow for the easy emptying of DIN-standard containers with capacities ranging from 80 to 1,100 liters directly into the compactor.

Access Control

The machine can be equipped with an identification system to prevent unauthorized use and enhance security.
Available options include credit cards, charge cards, prepaid cards, as well as QR code and RFID recognition.

Waste Management 4.0

With the falconic web platform, operators and service partners can monitor their entire container fleet 24/7—on a computer or via mobile device. Status, fill levels, and operational conditions are available in real time, and malfunctions can be quickly analyzed and resolved remotely.

Pickup cycles are automatically determined based on current fill levels and efficiently integrated into collection routes—resulting in fewer empty trips and optimally coordinated waste disposal processes.

Public Lists

Safe disposal of cardboard, plastic, or general waste via a drop slot or chute. Access authorization can be integrated with falconic!
Optional: Stairs, cover for electrical components / control panel

Additional Options

Zentrierschiene

Centering rail

The new centering rail ensures maximum safety when picking up, positioning, and setting down containers. It is suitable for all common types of containers and offers exceptional flexibility in daily use.

Centering Rails

Easy Push

Easy Push is an innovative add-on option for lightweight, expansive, and clumping materials. Hydraulic push walls efficiently compact the material, actively push it forward, and reliably break up clumps.

This enables safe, one-person unloading by the truck driver. Ideal for Styrofoam, insulation wool, cardboard, and plastic and wood milling waste.

Easy Push

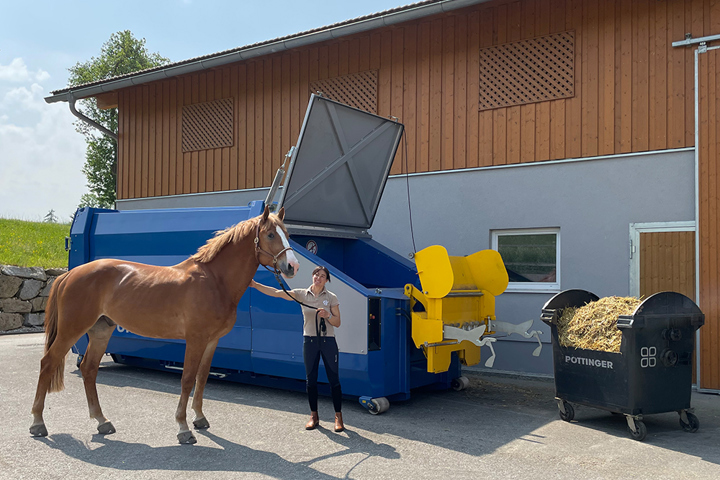

BioCubePress

The BioCubePress compacts and stores horse manure in a clean, sealed, and rain-protected manner. The manure is automatically and effortlessly emptied into the press container via a mobile 1,100-liter bin.

With a capacity of up to 10 metric tons, it is ideal for horse farms—it minimizes odors and flies, features digital fill-level monitoring, and allows for easy pickup by a hook-lift truck.

BioCubePress

MULTIPRESS Press Container

MULTIPRESS Press Container

Technical Specifications

MULTIPRESS 1.4 MP 16-1.4 MP 18-1.4 MP 20-1.4 MP 22-1.4 MP 24-1.4
Volumen Container 16 m³ 18 m³ 20 m³ 22 m³ 24 m³
Länge (ohne Haken hinten) 5650 mm 6050 mm 6450 mm 6850 mm 7250 mm
Länge (inkl. Haken hinten) 5850 mm 6250 mm 6650 mm 7050 mm 7450 mm
Breite x Höhe 2460 x 2704 mm 2460 x 2704 mm 2460 x 2704 mm 2460 x 2704 mm 2460 x 2704 mm
Einwurfhöhe 1400 mm 1400 mm 1400 mm 1400 mm 1400 mm
Volumen/Hub 1.4 m³ 1.4 m³ 1.4 m³ 1.4 m³ 1.4 m³
Höhe des Presskolbens 700 mm 700 mm 700 mm 700 mm 700 mm
Pressenöffnung B x L 1860 x 1050 mm 1860 x 1050 mm 1860 x 1050 mm 1860 x 1050 mm 1860 x 1050 mm
Einfüllöffnung B x L 1860 x 1753 mm 1860 x 1753 mm 1860 x 1753 mm 1860 x 1753 mm 1860 x 1753 mm
Presskraft 340 kN 340 kN 340 kN 340 kN 340 kN
Pressvorgang Dauer 40 s 40 s 40 s 40 s 40 s
Motorleistung 5.5 kW 5.5 kW 5.5 kW 5.5 kW 5.5 kW
Absicherung träge 16 A 16 A 16 A 16 A 16 A
Leergewicht 4797 kg 4947 kg 5097 kg 5247 kg 5397 kg
Konisch 3 x 100 mm 3 x 100 mm 3 x 100 mm 3 x 100 mm 3 x 100 mm
